Base64 Encoding Performance: Java vs Rust

Cover image by Clker-Free-Vector-Images from Pixabay (plus my gimp madskillz).

UPD: A lot of interesting comments on reddit:

• Added benchmarks for data-encoding crate.
• Added an optimized version of JDK ported implementation that brings Rust closer to JVM for encoding.
• WOW. Merged PR using base64-simd crate, which performance is almost 10x better than anything else!
• Blog post remains the same, if you curious about new numbers: check it here and here.

I got curious… Not that’s something new to me. But a bit unusual thought after benchmarking Base64 performance in Java: what is the maximum performance in unmanaged world? And since I wanted to explore Rust a bit, I decided that it’s a good opportunity!

I went to google to find something about benchmarking base64 encoding performance for Rust and stumbled upon a github issue saying that crate base64 isn’t that fast. That opened an opportunity for me to check it.

What Are We Benchmarking?

• base64 crate.
• Base64 encoding/decoding from crypto2 crate. Sadly, it’s not published so I had to copy-paste its code for benchmarking.
• java.util.Base64: I ported implementation from Java to Rust for benchmarking purposes.

And then I want to compare it with the results of JVM benchmarks on the same inputs.

For benchmarking Rust I used criterion.rs, a very nice tool for benchmarking. It does much more out of the box than JMH. The hardware configuration is Intel® Core™ i7–1165G7 @ 2.80GHz × 8 (4 core + 4 HT) with 16 GB RAM.

Benchmarks

Here are couple of graphs for Rust only, generated by Criterion: for encode and decode performance. base64 implementation is a clear winner here for both encoding and decoding.

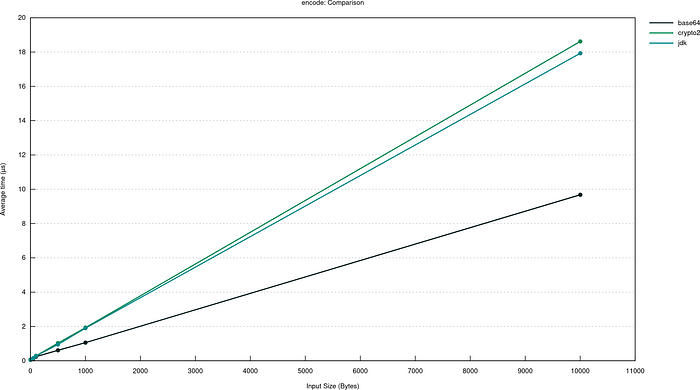

Performance of encoding for different input data sizes.

Performance of decoding for different input data sizes.

For the decoding you may notice that I benchmarked 2 methods from base64: decode_config and decode_config_slice. The reason is that they have a bug in their implementation: decode_config allocates significantly more memory than it’s needed. But the difference in terms of performance is very small (around 10%). It was fixed, but not in the most efficient way, and still not published.

Versus Java

Let’s compare performance for 1K input Rust vs Java: and immediately — WOW!

For encoding Java performs better than Rust O_O:

method                       input  output  avg time
base64::encode_config         1002    1336      1078
crypto2::encode_with_config   1002    1336      1977
jdk::encode                   1002    1336      1913
j.u.Base64.Encoder            1002    1336       872

And even ported almost 1-to-1 implementation is 2 times slower than Java.

For decoding everything looks normal: ported implementation has comparable performance and Rust’s implementation is about 2 times faster than Java.

method                       input  output  avg time
base64::decode_config         1336    1002      1163
base64::decode_config_slice   1336    1002      1075
crypto2::decode_with_config   1336    1002      4014
jdk::decode                   1336    1002      1985
j.u.Base64.Decoder            1336    1002      1930

And the full table for different input sizes:

method                       input  output  avg time
base64::encode_config           12      16        76
base64::encode_config           51      68       120
base64::encode_config          102     136       184
base64::encode_config          501     668       584
base64::encode_config         1002    1336      1078
crypto2::encode_with_config     12      16        67
crypto2::encode_with_config     51      68       145
crypto2::encode_with_config    102     136       274
crypto2::encode_with_config    501     668      1101
crypto2::encode_with_config   1002    1336      1977
jdk::encode                     12      16        70
jdk::encode                     51      68       138
jdk::encode                    102     136       262
jdk::encode                    501     668      1004
jdk::encode                   1002    1336      1913
j.u.Base64.Encoder              12      16        46
j.u.Base64.Encoder              51      68        86
j.u.Base64.Encoder             102     136       128
j.u.Base64.Encoder             501     668       446
j.u.Base64.Encoder            1002    1336       872
base64::decode_config           16      12        85
base64::decode_config           68      51       119
base64::decode_config          136     102       174
base64::decode_config          668     501       584
base64::decode_config         1336    1002      1163
base64::decode_config_slice     16      12        76
base64::decode_config_slice     68      51       152
base64::decode_config_slice    136     102       165
base64::decode_config_slice    668     501       586
base64::decode_config_slice   1336    1002      1075
crypto2::decode_with_config     16      12        96
crypto2::decode_with_config     68      51       239
crypto2::decode_with_config    136     102       442
crypto2::decode_with_config    668     501      1934
crypto2::decode_with_config   1336    1002      4014
jdk::decode                     16      12        75
jdk::decode                     68      51       150
jdk::decode                    136     102       254
jdk::decode                    668     501      1007
jdk::decode                   1336    1002      1985
j.u.Base64.Decoder              16      12        53
j.u.Base64.Decoder              68      51       128
j.u.Base64.Decoder             136     102       231
j.u.Base64.Decoder             668     501       977
j.u.Base64.Decoder            1336    1002      1930

Conclusion

An unexpected result of Java outperforming Rust in encoding will please Java users :) Even though it’s totally possible for Java to outperform unmanaged code, it’s a rare case. Let’s celebrate :)

I liked the opportunity to compare Java versus Rust. I rarely cross boundaries of my main platform (Scala, JDK). I will probably do it more in the future.

Full criterion report is here. Source code is on GitHub.
